A metal fence looks simple, but every section carries and transfers force. Without stable posts, secure connectors, and suitable foundations, even strong panels can lean or loosen. This guide explains how a metal fence works and how its components support long-term performance.
A metal fence does not depend on one strong component. It works because every part passes pressure to the next part. This creates a continuous load path from the exposed fence surface to the soil or mounting structure.
Metal fence panels define the protected area. They may restrict entry, guide people, protect equipment, or provide privacy. Their height, opening size, and pattern determine how much visibility, airflow, and access control the fence provides.
Open picket or mesh panels allow air to pass through. Solid sheets block views more effectively but receive greater wind pressure. The correct panel type therefore depends on both its purpose and the installation environment.
Wind is one of the most common forces acting on a fence. People leaning against it, moving gates, nearby machinery, vegetation, and accidental impacts may also create pressure.
The panel receives these forces first. It must then transfer them without bending, rattling, or separating from the supporting frame. Taller and wider panels usually create greater demands on the surrounding structure.
Horizontal rails connect individual pickets, bars, mesh sheets, or solid panels. They spread local pressure across a wider section instead of allowing one member to carry the entire load.
A framed panel often provides greater rigidity because its outer frame controls movement around the perimeter. Rail size, spacing, and connection quality all affect how well this load distribution works.
Brackets, clips, screws, bolts, and welded joints connect the rails or panels to the posts. These components may look small, but they are critical to the load path.
Loose or poorly matched connectors allow movement between sections. Repeated movement can enlarge fixing holes, weaken welds, and create noise. Correctly fitted connectors keep the panel aligned while transferring pressure into the supporting posts.
Metal fence posts are the main vertical supports. They receive loads from the panels and rails, then carry those forces toward the foundation.
A straight fence line uses line posts at regular intervals. End posts, corner posts, and gate posts may face stronger or less balanced forces. They often require greater strength or more secure anchoring.
The foundation prevents each post from tilting, lifting, or sliding. A post may be embedded in concrete or attached to a solid surface through a bottom fixed metal plate.
An embedded post transfers loads into the surrounding concrete and soil. A surface-mounted post transfers them through its base plate, anchor bolts, and the supporting slab. Both systems need accurate installation to work correctly.
Posts determine whether a fence remains upright under regular use and outdoor exposure. Even strong metal fence panels cannot perform well when the posts move or lean.
Line posts support panels on both sides, so their loads are often more balanced. End posts support only one direction. Corner posts change the direction of the fence and receive forces from two fence lines.
Gate posts face additional stress from the weight and movement of the gate. They may need thicker walls, stronger footings, or closer attention to connection design.
Post strength depends on its material, cross-section, wall thickness, height, and unsupported length. Wider spacing places more load on each post and rail.
Solid or tall fencing may require closer spacing because it catches more wind. Open metal fencing usually allows greater airflow, but it still needs spacing suitable for the panel weight and site conditions.
Embedded posts extend below ground and are commonly set in concrete. Their installation depth and footing size influence resistance to overturning.
Surface-mounted posts sit on base plates fixed to concrete, masonry, or structural steel. The mounting surface must be sound because weak concrete or unsuitable anchors can cause the whole connection to fail.

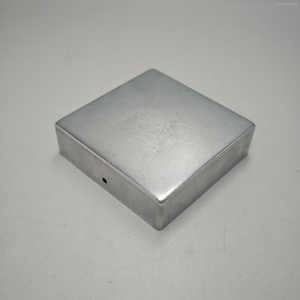

Hollow posts often have open upper ends. Caps cover these openings and create a safer, cleaner finish. They can also reduce direct entry of dirt, leaves, and moisture.
Metal post caps may be produced for square or round posts. Material, dimensions, and surface color can be adjusted to suit different fence systems and visual requirements.
Tip: Confirm the actual outside dimensions of every post before ordering caps, covers, or fitted connectors.
Panels perform the most visible function within the fence system. Their construction influences security, privacy, airflow, appearance, and structural demand.
Picket panels use spaced vertical members connected by horizontal rails. They provide clear boundary control while allowing light and air to pass through.
The spacing between pickets affects visibility and access. Narrow spacing may make climbing or passing objects through the fence more difficult, while wider spacing creates a more open appearance.
Mesh panels use intersecting wires, rods, or formed sections. They distribute pressure across many small connections and provide broad visibility.
Their open area reduces wind resistance compared with solid sheets. This makes them useful around gardens, public spaces, storage areas, and industrial boundaries where full privacy is not required.
A corrugated metal fence uses profiled sheets to create a more private barrier. The corrugations increase sheet stiffness, helping the panel resist bending across its surface.
However, the solid area catches more wind. Stronger rails, suitable metal fence posts, secure fasteners, and carefully designed foundations may be needed in exposed locations.
Panel height and width affect both function and load. Taller panels provide greater screening but create more leverage against the posts.
Longer panels reduce the number of posts but increase the span carried by each rail. Buyers should assess panel dimensions together with post spacing rather than treating them as separate choices.
Small fittings determine how well the main structural parts work as one system. Poorly selected hardware may create movement even when the posts and panels are strong.
Fence connectors hold adjoining components in the correct position. They may wrap around a rail, fit inside a post, or attach through prepared holes.
Their dimensions must match the connected profiles. Excessive clearance can create movement, while an overly tight fit may damage coatings or make installation difficult.
Bolts and screws allow adjustment, removal, and part replacement. They are useful when panels may need future maintenance or relocation.
Welded joints provide permanent connections and a clean appearance. However, welding quality must remain consistent. Heat-affected areas may also need renewed corrosion protection after fabrication.
A bottom fixed plate creates a wider connection between a post and its mounting surface. Holes in the plate provide positions for anchors or bolts.
Plate thickness, hole placement, post fit, and dimensional accuracy affect installation. The company’s metal plate products support customization in size, material, thickness, and finish for different structural requirements.
Base covers conceal mounting plates, anchor heads, welds, and small installation gaps. They help create a consistent finished appearance across a fence line.
Some galvanized covers also reduce direct exposure around the lower post area. However, a cover is not a structural replacement for the plate, anchors, or foundation beneath it.
Note: Check connector tolerances, hole positions, and coating thickness before approving a large production batch.
Correct installation allows every component to perform its intended function. Misalignment can create concentrated loads and place unnecessary stress on nearby parts.
The installer first marks the fence line and confirms the post spacing. Holes are then prepared according to the post size, fence height, soil condition, and expected loads.
Each post must remain plumb while concrete is placed. Panels should not be attached before the foundation has gained enough stability to resist movement.
Surface-mounted systems begin with a suitable concrete or structural base. Installers position the plates, mark anchor locations, drill accurately, and secure each post.
The plates must sit level. Packing materials or uneven tightening can create poor contact, causing the post to lean or the plate to flex under pressure.
Panels are installed after the posts are stable. Installers check the height, horizontal alignment, and spacing before fully tightening fasteners or completing welds.
Minor errors can build across a long fence line. Regular measurements help prevent uneven top lines, inconsistent gaps, and posts pulled out of position.
Fence components are manufactured within set dimensions, but every installation includes small variations. Foundations, post profiles, coatings, and site surfaces may not be perfectly uniform.
Connectors should allow practical assembly without creating loose joints. Custom sizes may be useful when existing posts or non-standard profiles must be integrated into a new system.
Material selection controls strength, weight, corrosion behavior, appearance, and maintenance needs. The same fence design may perform differently when produced from another metal or finish.
Carbon steel is widely used for posts, plates, rails, and brackets because it provides strength and stiffness at practical section sizes.
Untreated steel can corrode outdoors. It usually needs paint, powder coating, galvanizing, or another protective finish when exposed to moisture.
Galvanizing places a protective zinc layer over steel. This layer separates the base metal from water and air, slowing corrosion during outdoor use.
A galvanized metal fence still needs inspection around cut edges, drilled holes, welds, and damaged surfaces. These areas may lose some coating protection during fabrication or installation.
Stainless steel provides strong corrosion resistance in many exposed environments. It is often selected when appearance and lower maintenance are important.
Aluminum is lighter and does not develop red rust like carbon steel. However, its section design must provide enough stiffness for the required span and load.
Available treatment methods include hot-dip galvanizing, powder coating, electroplating, and spray painting. The company also works with carbon steel, galvanized steel, stainless steel, and aluminum fence accessories.
The correct finish depends on climate, handling, expected wear, appearance, and maintenance plans. Coastal, humid, or industrial sites may require more careful material and coating selection.
Tip: Specify the base material, coating method, color, exposure conditions, and inspection requirements in the purchase document.
Fence design must balance security, visibility, airflow, and appearance. Improving one function may increase structural demands elsewhere.
Pickets, bars, and mesh allow air to pass through their openings. This reduces the total pressure transferred to rails, connectors, posts, and foundations.
Open designs also improve visibility. They are suitable where boundary control matters more than complete screening.
Solid panels block direct views and provide stronger visual separation. They can also reduce wind passing through the protected area.
However, they act more like a continuous wall. Wind loads rise, so posts and foundations may need greater strength than those supporting open panels.
Corrugations improve the local stiffness of a sheet. They help it resist bending between fixing points.
They do not make the entire fence self-supporting. A corrugated metal fence still depends on suitable rails, fasteners, posts, base connections, and foundations.
On sloping land, panels may follow the ground angle or use stepped sections. Each method changes ground clearance and post length.
Accurate planning prevents large gaps, uneven top lines, and difficult connections. It also helps determine whether standard panels can be used across the full site.
A metal fence works by moving loads from panels into rails, connectors, posts, and foundations. Each component must fit and perform correctly. Weijiang Metal supplies post caps, connectors, fixed plates, decorative covers, and other fence accessories. Custom materials, sizes, patterns, and finishes help these components match different metal fencing systems and installation needs.
A: Metal fence posts and foundations carry loads from panels into the ground.
A: Metal fence panels use brackets, bolts, screws, clips, or welded joints.
A: A metal fence may lean because of weak footings, loose anchors, or soil movement.
A: Metal fence cost depends on material, height, finish, hardware, and installation conditions.
A: Open panels reduce wind loads, while solid panels provide greater privacy.
